Introduction – What is Binding Wire?

Binding wire, commonly known as construction wire or GI binding wire, is a thin steel wire used in reinforced concrete construction to tie steel rebars together before pouring concrete. Although binding wire does not contribute to structural strength directly, it plays a critical role in maintaining reinforcement position, spacing, and alignment.

Binding wire is used worldwide in residential, commercial, industrial, and infrastructure projects.

---

1. What is Binding Wire? (Engineering Definition)

Binding wire is a soft, ductile steel wire, usually manufactured from low-carbon mild steel, designed to be easily twisted by hand or tools for tying reinforcement bars.

It is generally supplied in coils and available in different gauges (diameters).

---

2. Importance of Binding Wire in Grey Structure

Binding wire ensures:

✔ Proper placement of reinforcement
✔ Correct cover to steel
✔ Prevention of steel displacement during concreting
✔ Accurate structural performance
✔ Faster and organized steel fixing work

Without proper binding, steel bars may shift, leading to structural defects and durability issues.

---

3. Types of Binding Wire

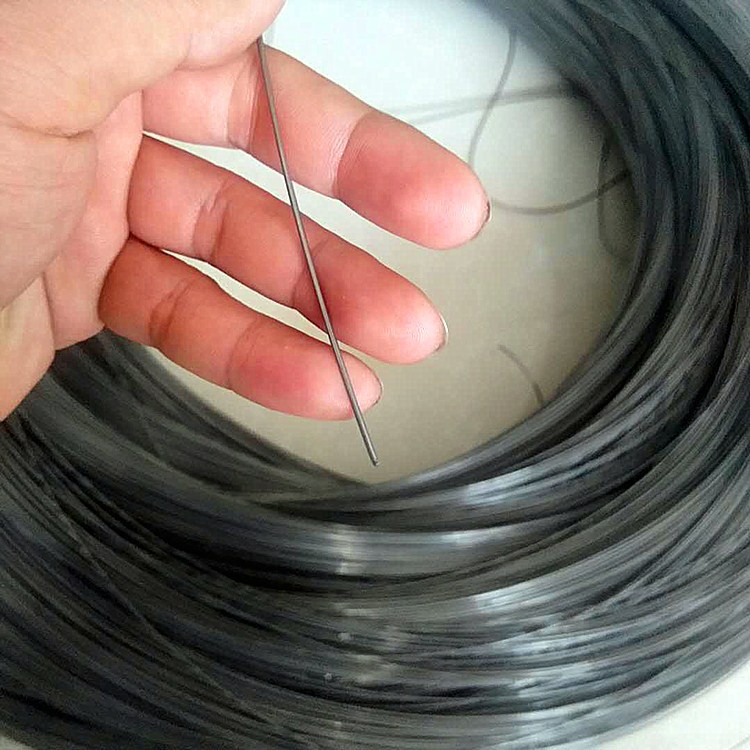

a) Black Annealed Binding Wire

Characteristics:

• Heat-treated (annealed)
• Very soft and flexible
• Easy to twist

Uses:

• RCC slabs
• Beams and columns
• Foundations

👉 Most commonly used type in Pakistan

---

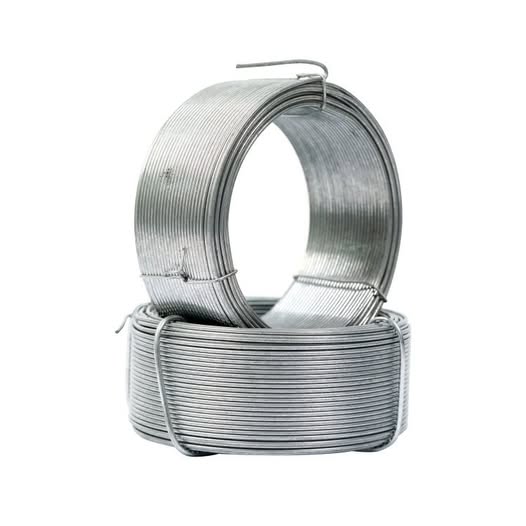

b) Galvanized Iron (GI) Binding Wire

Characteristics:

• Zinc-coated
• Corrosion-resistant

Uses:

• Coastal areas
• Damp environments
• Water tanks and basements

---

c) PVC Coated Binding Wire

Characteristics:

• Plastic-coated
• High corrosion resistance

Uses:

• Special construction environments
• Chemical plants

---

d) Stainless Steel Binding Wire (Rare Use)

Uses:

• Marine structures
• High-corrosion zones

---

4. Standard Sizes (Gauges) of Binding Wire

Gauge (SWG)	Diameter (mm)	Common Use
16 Gauge	1.6 mm	Heavy reinforcement
18 Gauge	1.2 mm	General RCC work
20 Gauge	0.9 mm	Light tying work

📌 18-gauge binding wire is the most commonly used in house construction.

---

5. Uses of Binding Wire in Construction

✔ Tying main reinforcement bars
✔ Fixing stirrups
✔ Holding chairs and spacers
✔ Binding column cages
✔ Slab reinforcement fixing
✔ Beam and foundation reinforcement

---

👉 Click Here for More ENGINEERING BOOKS

6. Binding Wire Quantity Calculation

a) General Thumb Rule

Binding Wire = 0.9% to 1.2% of total steel weight

---

b) Practical Estimation Method

If steel quantity = 1000 kg (1 ton)

Percentage	Binding Wire Required
0.9%	9 kg
1.0%	10 kg
1.2%	12 kg

📌 Recommended:
👉 10 kg binding wire per ton of steel

---

c) For Small Houses

House Size	Approx. Binding Wire
3 Marla	20 – 25 kg
5 Marla	30 – 35 kg
10 Marla	55 – 65 kg

(Depends on steel quantity and design)

---

7. Binding Wire Consumption in RCC Members

RCC Member	Consumption
Slab	8–10 kg / ton
Beams	10–12 kg / ton
Columns	12–15 kg / ton
Footings	8–10 kg / ton

---

8. Advantages of Binding Wire

✔ Easy to use
✔ Low cost
✔ Flexible and ductile
✔ Ensures structural accuracy
✔ Saves time during steel fixing

---

9. Disadvantages of Binding Wire

❌ No structural strength
❌ Can corrode if poor quality
❌ Overuse increases cost

---

10. Quality Check for Binding Wire

✔ Uniform thickness
✔ No cracks or rust
✔ Easy twisting without breaking
✔ Proper annealing (soft feel)

---

11. Storage & Handling

✔ Store in dry area
✔ Protect from moisture
✔ Keep coils covered
✔ Avoid mixing with scrap steel

---

12. Current Binding Wire Price in Pakistan (2025)

Type	Gauge	Rate (PKR/kg)
Black Annealed	18	380 – 450
GI Binding Wire	18	520 – 650
PVC Coated	—	650 – 800

📌 Prices vary with steel rate, city, and market conditions.

---

13. Common Mistakes to Avoid

❌ Using very thin wire
❌ Over-tightening causing breakage
❌ Using rusted wire
❌ Ignoring corrosion conditions

---

14. Frequently Asked Questions (FAQs)

Q1: Does binding wire add strength to RCC?
No, it only holds steel in position.

Q2: Which binding wire is best for house construction?
18-gauge black annealed binding wire.

Q3: How much binding wire is needed per ton of steel?
Approximately 10 kg.

---

Mughal Steel (binding wire) → https://www.mughalsteel.com

Ittefaq Iron → https://ittefaqiron.com

Agha Steel → https://aghasteel.com

Conclusion

Binding wire may appear small, but it plays a major role in ensuring quality RCC construction. Correct selection, quantity estimation, and proper tying significantly improve structural accuracy and durability
